LUXMAN A3700 フルレストア MQ360 バージョン

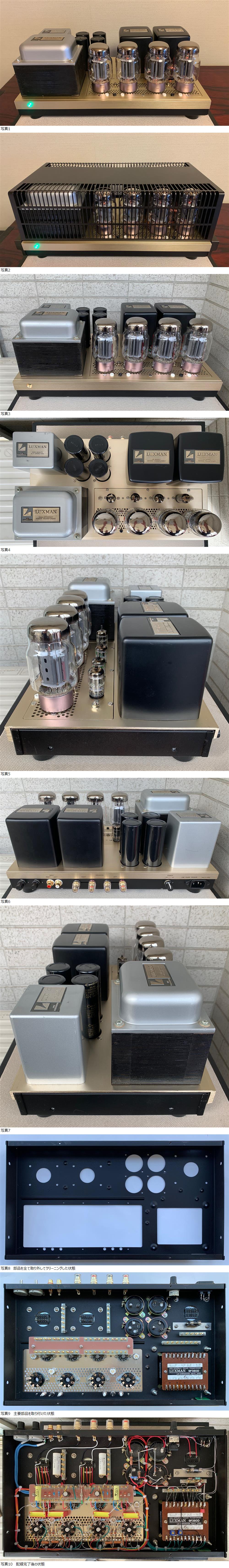

部品を全て取り外してクリーニングした状態

主要部品を取り付けた状態

配線完了後の状態

  • Product Quantity
    : 1
  • Starting Bid
    :1円
  • Highest Bidder
    : チャッピーのパパ / Rating:776
  • Listing Date
    :2026年01月21日 22時57分
  • Bidding closes on
    :2026年01月25日 21時22分
  • Auction Number
    :q1216799829
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
ラックスマンMQ360改造アンプの中古をフルレストアしました。

MQ360のシャーシー、トランス類を使用しつつプリント基板を廃しシャーシー内にラグ端子を林立させてディスクリート配線した作品でかなり込み入った配線の手間は大変だったろうと思わせるものでした。
これに搭載されていたMQ360用に改良されたアウトプットトランス、電源トランス、のメリットを生かして手慣れたA3700のシンプルで安定した回路を元にマイナーチェンジを加えて組み直し、長期間トラブルフリーでご愛用頂ける作品に仕上げました。

アンプは音質の優れたパーツを厳選して組み上げたため、演奏者の息づかいやライブ演奏のバックグラウンドノイズなど細部の再現性も極めて優れたもので、豊かな低音を伴い、従来のLUXアンプと一線を画したマッキントッシュMC275に勝るとも劣らないサウンドに仕上がっています。
演奏の広がりや奥行き感の再現性に優れ、ヴォーカルの再現性に優れていてあたかも目の前で歌っているように聞こえます。
また、ライブ演奏の拍手を聴いてみて下さい。出来の悪いアンプですと刺激的な音になりますがこのアンプではクリアーで柔らかくまるでその場にいるような感覚が得られます。
シャープでクリアなのに柔らかい、旧来の真空管アンプとは一線を画した音質に仕上がっています。

部品、配線を全て外してクリーニング後、新たに組み直しました。スピーカー端子はバナナプラグ対応。
出力管ソケットはLUX製を再生して使用。MT管ソケットはシャーシー下付けソケットが使用されていたためサブシャーシ上面に傷が無いのを生かし保管していた下付けソケットを使用しています。ボリュームは導電性プラスチックを使用した信頼性の高い製品を採用しています。組み立てには基本的にウルトラスリムヘッドビスを使用してスマートな外観になるように気をつけています。
更に、出力管交換時のバイアス調整をアンプをひっくり返したり、裏蓋を外すことなしに出来るよう測定端子と調整ボリュームをシャーシー上面に配置していますので球転がしが楽に出来ます。

配線材は高品質高音質のBELDENフックアップワイヤーを使用。カップリングコンデンサーは音の良いWIMAのポリプロピレンフィルムコンデンサーの中でも最高級品である金属箔電極使用のFKP1を使用しています。バイパスコンデンサーにはやはり音の良さで定評のあるVishayのフィルムコンデンサーを採用。抵抗はVishay Daleの金属皮膜抵抗を使用しています。
電源のブロックコンデンサーは容量の測定値が定格以上でESR値も正常なので交換の必要無く、そのまま使用しています。
出力管はテフロンベースに改良された新型PSVAN KT88 PT新品を搭載しています。非常に優れた球でGEC KT88 GOLD LIONに引けを取らないサウンドを聴かせてくれます。

初段にはGE JAN 5670W、NOS(New Old Stock)を使用。
この球はマイクロフォニックノイズが低く、並外れて長寿命な製品で当時の販売価格は非常に高価でした。
また、製造されたものの大半を米国陸軍と海軍が備蓄したので一般には殆ど流通しなかったことに加え備蓄が放出された後も12AU7や6AQ8等とピン配列が違うこともあり現在は手頃な値段で入手できるコスパ抜群の優れものです。

ドライバー管もGE 5687、NOSを使用しています。

アンプを組み上げてから5日間以上作動して異常が無いことを確認して最終調整しています。

メンテナンス用に回路図、出力管交換時の調整方法の図面を同梱します。

なお、レストア品ですから写真で確認出来ないような僅かな傷等がありますからご了承下さい。また、神経質な方、完璧を求める方は入札をご遠慮下さい。
