sansui サンスイ AU-D907G EXTRA (S-A) 『 オーバーホール実施 保証あり 』 プリメインアンプ


  • Product Quantity
    : 1
  • Starting Bid
    :84,600円
  • Highest Bidder
    : あークン / Rating:746
  • Listing Date
    :2026年01月18日 17時14分
  • Bidding closes on
    :2026年01月25日 21時08分
  • Auction Number
    :e1216424056
  • Condition
    :State it in the description
  • Automatic Extension
    :Yes
  • Authentication
    :No
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. It is possible that the product can only be picked up by yourself, and the self-pickup fee is quite high, please check the page to confirm
  3. The ink is liquid and cannot be shipped internationally, please be aware before placing a bid.


The
The

AU-D907G EXTRA (S-A)

商品説明
ご覧頂きありがとうございます。

【ご挨拶】
いつも当方の出品をご覧になって頂き、誠とにありがとうございます。
皆様の温かいご支援のお陰で、2018年スタートから今年で8周年を迎えることができました。

【アンプ・CDプレイヤー・DATデッキ】を含む 400台以上のオーバーホールを実施させて頂く事かでき、心より感謝申し上げます。

これからも、正確で丁寧な作業を努めて参ります。
今後とも変わらぬお引き立てを賜りますよう、何卒よろしくお願い申し上げます。



Sansui 上位機 AU-D907G EXTRA『動作品』です。

AU-D907F Extraをベースにグラウンド・フローティング回路などの改良を加えることで
完成度を高めたインテグレーテッドアンプ。
178,000円 (1983年発売)

サンスイトーン健在のアンプです。
最後までお読みになり、納得の上
入札をお願い致します。

濃厚で、ふわっと来る低音がいいです!
オーディオ全盛期で上位機の音が今でも
お楽しみできます。

ヴィンテージのアンプは数十分の暖気する事
で、本領発揮する様に思います。
(主観ですので参考までに)

今後この仕様を作るには、コスト的に
困難なのではないでしょうか!

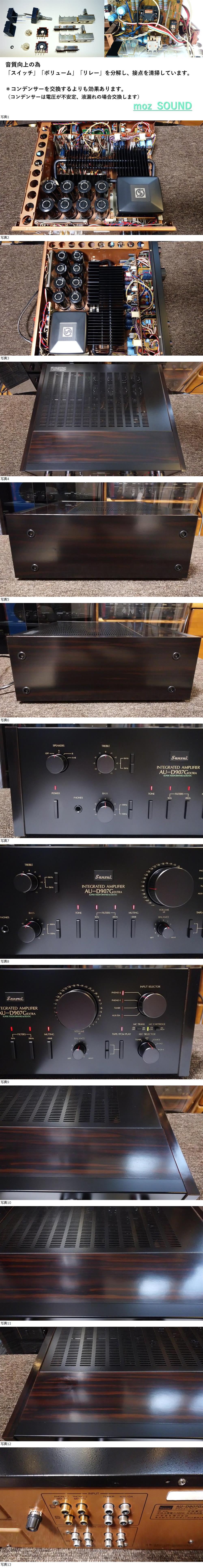

外見は、
スリ傷、側板に補修カ所あります。
比較的綺麗な状態です。
(主観です)写真にてご確認下さい。
*写真では写りきらない傷もあるものと思って下さい。


音に関しては、測定器を用いて
測定はしてませんが、問題は無くレコード、CD
を良い音出しております。
また、各部のガリ音は整備後出ておりません。

音質向上の目的で、
入力部~出力部間のスイッチ部接点を『分解』し
クリーニングしています。
(1日5時間)3日以上音出し確認実施しております。



最後までお読みになり、納得(同意)の上、
入札お願い致します。

『中古品です、新品同様をお探しの方、神経質の方は入札をお控え下さい』
*基本は、ノークレーム、ノーリターンでお願い致します。



『整備内容』
* Input、rec selector分解清掃
*各スイッチ分解清掃
*メインボリューム分解接点清掃
*バランス、トーンボリューム接点清掃
*スピーカーリレー接点清掃
*各基板ハンダクラック修正
*コンデンサー固定用ボンド清掃(POWER基板)
*入力端子清掃
*内外部、清掃
*BIAS、DC_0V、確認調整
(BIAS・サービスマニュアル値)

『確認項目』
* phono MC,MM 正常
* tuner,aux,tape1,2 正常
* tone,balance,各スイッチ 正常
* RECセレクター 正常
* 各部ガリ音 無し
(長期操作しないか所はガリの発生する可能性あります)




『保証』 発送日から90日間保証の対応致します。

*「音が出ない、電源が入らない、ノイズが出る」
場合は修理対応致します。
「その際の送料は『出品者』が負担致します」

*修理が不可能な場合は返金対応致します。
*返金の場合は、落札金額のみ返金致します。
*振り込み手数料及び送料は返金出来ませんので、ご了承下さい。
*運送事故で破損した場合は、運送業者へ相談して下さい。

『上記の異常が発生している場合』
①取引ナビにてご一報ください。
「落札者様の判断で返送しないで下さい、保証対象外になります」
出品者側にて症状を把握した後、返送を依頼致します。
(音が出ない場合故障ではない可能性があります)
②取引ナビにて症状をできるだけの記入お願いします。
「異常の症状、接続されている機器、接続状態、セレクターの位置、等をお知らせ下さい」

商品の状態・注意事項
『商品の状態・注意事項1』
*すり傷、タッチペン処理あり
*側板に補修カ所あり
*ヴィンテージアンプの為故障のリスクあり
*付属品無し
*動作確認後の出荷の為発送に2日から4日かかる場合がございます。

『注意事項2』
*落札後のキャンセルは対応出来ませんのでご了承下さい。
*支払い後のキャンセルの場合、落札金額の70%での返金は対応致します。
*商品到着後のキャンセルは対応出来ませんのでご了承下さい。
*転売される方へ、転売した時点で保証対象外になります、ご了承下さい



*【ヴィンテージアンプの購入を検討されている方へ】アドバイスです!

1,『保証が無い、又は到着後7日間しか保証が無い場合は要注意』

・アンプの場合保証が1か月以上あるところから購入して下さい。
(理由)
数年、数十年間眠っていた可能性が有り、整備直後は不具合の症状無くても
数十日後に不具合が出る可能性が有ります。
また、到着後より7日以内で有れば返金修理対応の場合7日以降対応してくれません
もし対応してくれたとしても往復の送料代は購入者が負担する事になります。


2,『ボリュームの丸洗いやメインボリュームに接点復活剤を吹き付け対応した機種は要注意』

・ボリュームは丸洗いできません、メインボリュームは分解が必要です、(分解には特殊工具と技術が必要です)
・この機種のトーンとバランスのボリュームは構造上分解できません特殊清掃器具が必要です。
(理由)
丸洗いするとグリスが解け出し、回した時のネットリ感が無くなりスカスカな回転になってしまいます、
スカスカになると固定しているネジがゆるみガクガク遊びができてしまいます。
*接点復活剤を吹き付けの対応は軸を伝わりグリスが解けスカスカになる原因になります。
*接点復活剤吹き付けの対応は、一時的に良くなるかもしれませんが、半年後、1年後に
ガリが再発する可能性あります。

*接点復活剤吹き付けの対応は絶対にやってはいけません。

支払い方法
『支払い方法』
* ヤフー簡単決済

その他
『音が出ない場合下記の確認等を試して下さい』

*アンプの場合
・接続した端子とインプットセレクターが有っているか
・ヘッドホンにて音が出るか
・スピーカーAB切り替えがOFFになっていないか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続

*CDプレイヤーの場合
・輸送LDロックがある場合解除(外す)
・ヘッドホンから音が出るか
・接続している端子を別の端子に接続
・接続ケーブルを変える
・接続機器を変える
・CD入力端子がないアンプはTUNERかAUXに接続



最後まで読んで頂きありがとうございました。
では、よろしくお願い致します。

moz-SOUND
*古物商許可証 【第431040038626号/埼玉県公安委員会】




『解説 』(当時)

新開発のグラウンド・フローティング回路を搭載しています。
この回路はアンプのアース回路の見直しから開発されたもので、出力アンプ、負荷(スピーカー)、電源回路を完全なクローズドループとしています。
さらに電源部をフローティング電源とするとともに、電源トランス巻線をプラス、マイナスで独立させ、
それぞれを2組のブリッジで整流するデュアルブリッジ構成としたことで、アース回路での入力、出力、電源の干渉を排除しています。
これにより音質に有害なIHM歪を極少に抑えています。

電源部は、イコライザー/トーンアンプ、パワーアンプ部プリドライブ段のLchとRch、パワー段のLchとRchを独立させた5電源構成を採用しています。
また、電解コンデンサーにはB-2301に使用されたピュアフォーカスコンデンサーをそのまま搭載しており、再生音のハイクオリティ化を図っています。

MCカートリッジへの対応を図るため、リニアステップMCトランスを搭載しています。
このトランスはAU-D907F Extraのものをベースにさらにリファインされたもので、
純度が極めて高いマグネティック・インク社製ハイグレード・パーマロイコアを採用しています。
さらに、特殊アニール処理を施すことで歪の発生を抑えています。
また、MMカートリッジとMCカートリッジの負荷インピーダンスを完全に独立させ、
最適ロードを設置したことで、より純度の高い増幅を可能にしています。

パワーアンプ部にはスーパーFFとダイアモンド差動回路を搭載しています。
スーパーFFはNFBとフィードフォワードの長所を組合せた回路で、NFBでキャンセルしきれない歪と逆位相の信号をエラーコレクションアンプで作り出し、
出力で歪を打ち消しています。さらに、AU-D907G Extraではエラーコレクションアンプにバイポーラトランジスタの5倍以上のハイスピード能力をもつ
MOS-FETを採用することで歪除去能力を高めています。
プリドライブ段にダイアモンド差動回路を採用しており、電流マージンを飛躍的に大きくとることで過渡的な大入力に対しても十分な電流余裕を持たせ、
ドライブ段の高速応答性を実現しています。

イコライザーアンプ部にはダイアモンド差動回路を搭載したDCサーボ構成OCLイコライザー回路を搭載しており、
RIAA偏差20Hz〜300kHz±0.2dBの超ワイドレンジ、高精度化を実現しています。

マグネティック・ディストーションを排除するため、銅メッキシャーシやNM(ノンマグネティック)素子の採用、
電磁波フラックスを避けるコンストラクションなど、素材と構造の両面で検討が加えられています。

DA、PCM用の入力端子を搭載しています。
極性表示付きのAC電源コードを搭載しています。
サブソニックフィルターとスーパーソニックフィルターを搭載しています。
ターンオーバー周波数切り替え機能を備えたトーンコントロールを装備しています。
2系統のソースが独立するレコーディングセレクターと、2回路テープモニター/コピー機能を搭載しています。
フォノ入力端子には金メッキ端子を採用しています。
シルバーとブラックの2色のカラーバリエーションがありました。

型式 インテグレーテッドDCアンプ

実効出力 130W+130W(8Ω、10Hz〜20kHz、THD 0.003%)
130W+130W(8Ω、1kHz、THD 0.002%)
全高調波歪率(10Hz〜20kHz、実効出力時) 0.003%以下(8Ω)
混変調歪率(60Hz:7kHz=4:1、SMPTE) 0.003%以下(8Ω)
出力帯域幅(IHF、両ch動作、THD 0.02%) 5Hz〜80kHz(8Ω)
ダンピングファクター(新IHF、20Hz〜20kHz) 100(8Ω)
周波数特性(1W) DC〜300kHz +0 -3dB
エンベロープ歪 測定限界以下
TIM歪(Sawtooth法) 測定限界以下
スルーレイト ±250V/μsec(8Ω)
ライズタイム 0.5μsec

入力感度/入力インピーダンス(1kHz) Phono1、2 MM:2.5mV/47kΩ
Phono1、2 MC(Low/High):70μV(3.2Ω)/250μV(40Ω)
Tuner、Aux/DA、Tape/PCM play1、2:250mV/27kΩ
Phono最大許容入力(1kHz、THD 0.01%) MM:200mV
MC:25mV(low)、トランス方式
出力レベル/インピーダンス(1kHz) Tape rec(PIN):250mV(47kΩ)/600Ω
全高調波歪率(20Hz〜20kHz、5V出力時) Phono1、2 MM:0.005%以下
Phono1、2 MC:トランス方式
RIAA偏差(MM、Rec out) 20Hz〜300kHz ±0.2dB
SN比(Aネットワーク、ショートサーキット) Phono1、2 MM:90dB以上
Phono1、2 MC:81dB以上(70μV)
Tuner、Aux/DA、Tape/PCM play1、2:110dB以上
Phono入力換算雑音
(Aネットワーク、ショートサーキット) Phono1、2 MM:-142dBV
Phono1、2 MC:-161dBV
チャンネルセパレーション(1kHz) Phono1、2 MM:60dB以上
Phono1、2 MC:50dB以上
Tuner、Aux/DA、Tape/PCM play:80dB以上
トーンコントロール Bass:±10dB(50Hz)
Treble:±10dB(10kHz)
トーンセレクター Bass:150Hz、300Hz
Treble:3kHz、6kHz
フィルター Low:16Hz(-3dB、6dB/oct)
High:20kHz(-3dB、6dB/oct)
オーディオミューティング -20dB

定格消費電力(電気用品取締法) 320W
外形寸法 幅460×高さ160×奥行444mm
重量 18.0kg
以上

発送詳細
『発送方法』 埼玉県より着払いで発送いたします。
* ヤマト運輸
* 140から160にて発送予定です。
* プチプチと段ポールを使用し梱包は十分に注意致します。
* 梱包材は、リサイクル品を利用します。

* 『手渡しOK』 (朝霞市 外環和光北インター付近)
(梱包は致しません)
