☆ 【準美品 整備・レストア済】 TRIO KA-7300D トリオ プリメインアンプ 当時78,000円 取説コピー付 70年代国産ヴィンテージ ☆


カッコいいTRIOアンプです!

外装パーツは磨いてあります。

背面パネル及びRCA端子磨いてあります。

フロント周り綺麗です。

ボンネット概ね綺麗。「mode」ノブにキズ有

整備詳細は説明欄にUPした画像参照。

背面周り綺麗です。

  • Product Quantity
    : 1
  • Starting Bid
    :1,000円
  • Highest Bidder
    : tam******** / Rating:90
  • Listing Date
    :2026年01月25日 21時03分
  • Bidding closes on
    :2026年02月01日 21時02分
  • Auction Number
    :d1217240692
  • Condition
    :Damaged and stained (specify in description)
  • Automatic Extension
    :Yes
  • Authentication
    :Yes(Description)
  • Early Closing
    :Yes
  • Can I return the product?
    :no
  • Description
  • Q&A ()
  • Cost Estimator
  • Problem Item Response Procedur
Notes
  1. Plug-in electrical appliances are only shipped by air (shipping by sea requires commodity inspection)
  2. It is possible that the product can only be picked up by yourself, and the self-pickup fee is quite high, please check the page to confirm
  3. ※Please confirm whether it is animal fur. Animal fur products are in conflict with the Washington Treaty and cannot be shipped internationally.


The

☆.。.:*・゜☆.。.:*・゜2026年もご愛顧のほどよろしくお願いします!☆.。.:*・゜☆.。.:*・゜


☆ 【準美品 整備・レストア済】 TRIO KA-7300D トリオ プリメインアンプ 当時78,000円 取説コピー付 70年代国産ヴィンテージ ☆
名機KA-7300後継機!伝統の左右独立電源ダブルトランスを搭載したカッコいい70'sヴィンテージ・アンプ!

はじめに
  御覧頂きありがとうございます。1978年発売TRIO KA-7300Dの整備・レストア済品です。
  今後も安心してお使い頂けますよう整備してあります。現状での症状診断と故障個所の特定・修理に始まり、今後故障する恐れがある箇所の予防整備まで、故障・劣化した電子部品等を多数新品交換済です。更に外装パーツの磨き・レストアなど、外観の整備までじっくり手間をかけて仕上げた一台です。
  数々の青春の名機を蘇らせるべく、これまでに約1,000台・290機種以上のヴィンテージオーディオ機器の整備実績がございます。長年蓄積してきたノウハウを活かし、一台一台真摯に整備してきました。是非この機会に、かつてのオーディオ黄金期を彩った数々のアンプの音をご体感頂ければ本望です。
  開始価格は皆さまにオークションを楽しんでいただけるよう、一律1,000円スタートにて出品しております。また、お手数ですが最後の「注意事項」まで必ずご一読いただきますようお願い申し上げます。
  他にも出品中の機器がございます。出品リスト及び自己紹介欄もあわせてご覧いただければ幸いです。それでは、オークション終了までどうぞよろしくお願いいたします。

概要
メーカー:TRIO トリオ (現JVCケンウッド)
機種:KA-7300D
年式:1978年頃
価格:発売当時78,000円

  トリオが1975年に発売した往年の名機「KA-7300」をグレードアップさせたモデルです。型番に“D”が加わりDCアンプへと進化したことで、先代よりもハイスピードかつパンチのある音質を実現しています。シリーズ伝統の左右独立電源方式も引き続き採用され、ダブルトランスによる強力な電源部を搭載。そのため重量は約15kgと、存在感のある重厚なアンプとなっています。
  デザイン面も先代から正統進化を遂げ、端正で洗練された外観は数あるヴィンテージアンプの中でも屈指のカッコ良さを誇ります。価格も先代の65,000円から78,000円へとグレードアップ。当時はメインシリーズの高価格化に伴い、廉価シリーズとしてKA-7100DやKA-6100が登場したのもこの時期でした。
  往年のダブルトランス名機「KA-7300D」、この機会にぜひご検討ください。当時の取扱説明書(コピー)もお付けいたします。

動作・外観
【動作】特に不具合無し
◆SP-A、SP-Bともに左右のスピーカーから出音しています。L/Rの音量バランスも良好です。
◆PHONO(レコード)も音出しOKです。PHONO入力は2系統使用可、MCカートリッジ使用は別途機器が必要です。
◆カセットデッキ関連は手持ちのデッキで再生・録音とも動作確認済です。
◆背面SPターミナル配列は他メーカーと比べると変則的な為、スピーカー接続の際はご注意ください。(画像10)
◆そのほかの各機能も問題なく動作しており、ガリもほぼ皆無で快適にお使い頂けます。

【外観】
◆経年なりの小キズ小痛みがありますが、全体的に綺麗な準美品コンディションです。
◆パネルの「mode」ノブにキズがあります(画像6,画像7赤矢印部分)。ボンネットの向かって左側面に擦り傷、背面ツバ出し部に白い汚れがあります(画像7,画像9赤矢印部分)。

整備内容詳細
  基本的なメンテナンスに加え、電解コンデンサ46個を新品に交換済みです。小信号TRはこの機種では珍しくまだまだ健康で問題無いため、全数オリジナルままに留めておきました。新品電解コンデンサ交換により安定動作とクリアな音質を確保した上、当時のオリジナルトランジスタによるリフレッシュされた音質をお楽しみ頂けます。
  年数を経ているアンプのため、アイドリング調整については最終段トランジスタへの負担軽減と安定性を重視し、規定値を参考にしつつ実用上問題のない範囲でやや低めに調整しています。
  最終段パワートランジスタもオリジナルままで貴重なサンケン製2SA747A/2SC1116Aが使われています。令和の現代にリフレッシュ・ブラッシュアップされた「ヴィンテージ・TRIOサウンド」を是非お楽しみ下さい。

【整備・レストア前の動作状況】
① プロテクト解除せず
② メイン基板にはんだクラックが多数有り、要整備
→ 上記について確認したうえで、一連の整備・レストア作業を実施しております。

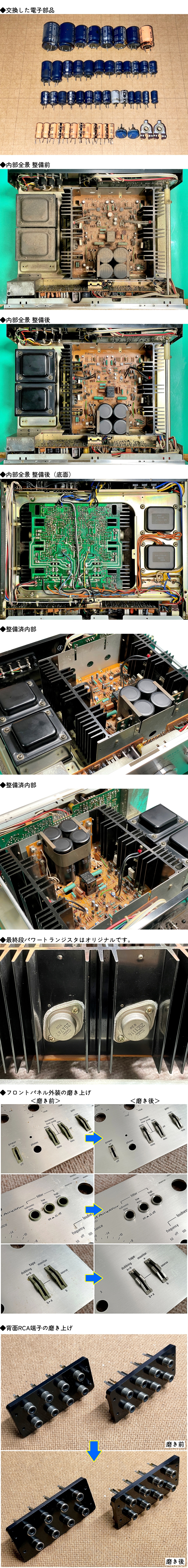

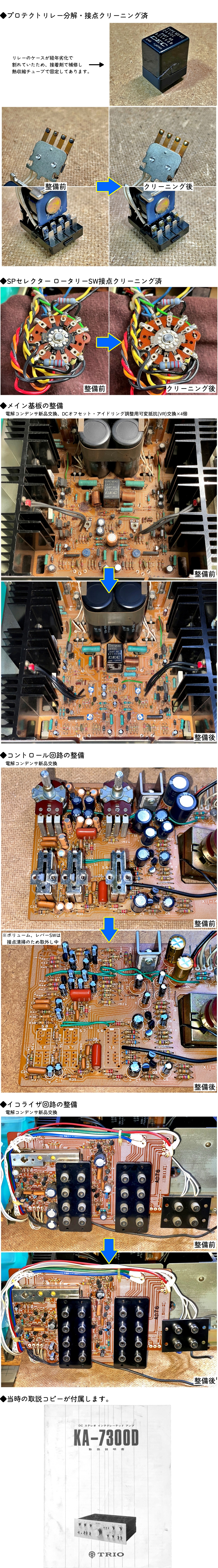

【整備・レストア内容】
◆内部の各スイッチ、ボリューム等の接点清掃
  ※必要に応じて基板から取外し、非破壊による接点洗浄・後処理を行っています。非破壊のため部品を痛めません。
◆プロテクトリレー分解・接点クリーニング
  ※リレーのケースが経年劣化で割れていたため、接着剤で補修し熱収縮チューブで固定してあります。
◆メイン基板…電解コンデンサ新品交換、DCオフセット・アイドリング調整用可変抵抗(VR)交換×4個
◆コントロール回路…電解コンデンサ新品交換
◆イコライザ回路…電解コンデンサ新品交換
◆基板のはんだ浮き・はんだクラック箇所の再はんだ作業
◆DCオフセット調整
◆アイドリング調整
◆外観レストア(外装パーツ、ボンネット、内部基板、背面RCA端子の各部クリーニングを実施)


The
The


その他・注意事項
【発送】
◆送料は「着払い」にてお送りします。※原則「元払い」には対応しておりません。落札後に「クロネコヤマト宅急便」または「ゆうパック」のいずれかをご指定ください。
◆ご入金確認後、2~3日以内に発送いたします。発送が完了しましたら、送料(着払い分)と伝票番号をお知らせいたします。

【アフター対応について】
◆到着時に明らかな故障が確認された場合は、初期不良として、往復送料を含め無償で修理対応いたします。
  それ以外の不具合については、有償(格安)にて対応可能です。その際の送料(往復分)は落札者様のご負担となります。
◆下記のケースはアフター対応の対象外となります:
  ・当該機器の発売当時に想定されていない使用方法(DAC/Bluetooth/スマートフォン接続/サブウーファー接続 など)による不具合・故障
  ・配送業者による輸送中の損傷・破損(※この場合は落札者様にて配送業者とご交渉ください)
  ・その他、落札者様側の不注意・誤使用に起因するトラブル全般
※なお、ヤフオクの取引メッセージには使用期限があるため、アフター対応の受付は「オークション終了から90日以内(約3ヶ月)」までとさせていただきます。あらかじめご了承ください。

【注意事項】
お取引について
・落札後24時間以内に初回連絡、かんたん決済期限内にお支払い可能な方のみご入札下さい。
・落札者様都合によるキャンセル・返品・返金はお受けできません。入札の取り消しもご遠慮下さい。
・開始直後の高額入札など、オークションの成立を妨げる行為と判断した場合は入札を削除する場合があります。

商品の状態について
・外観は画像および説明文をご参照下さい。細部のキズや経年劣化など、画像に写りきらない点もございます。
・ヴィンテージ機器のため、通常使用において問題のない範囲の細かい動作を気にされる方、新品同様の完動品をお求めの方はご入札をお控え下さい。

その他
・オークション開催中のみご質問を受け付けております。落札後のご質問には対応できません。
・修理依頼の受付は現在停止しております。
・直接引き取りは対応しておりません。
・評価は当方への評価を頂いた方のみに折り返し行っております。評価不要の場合は当方への評価もお控え下さい。


商品タイトル・説明・画像の無断転載を禁じます。
本説明文は「hestaray-magenta」により作成されたオリジナル文章です。構成・文面の流用を固くお断りいたします。
